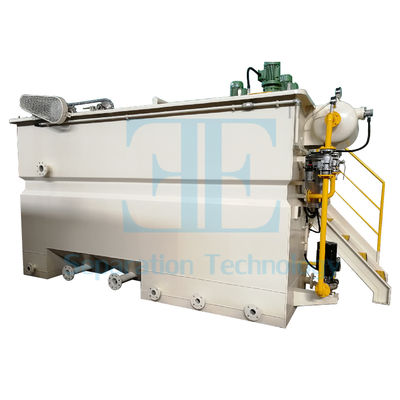

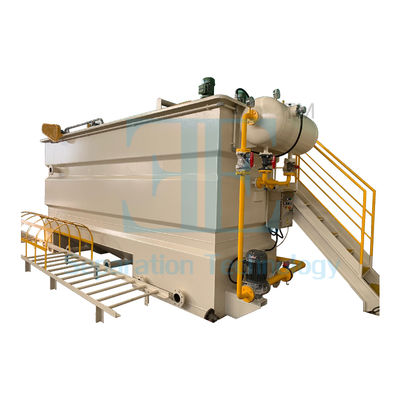

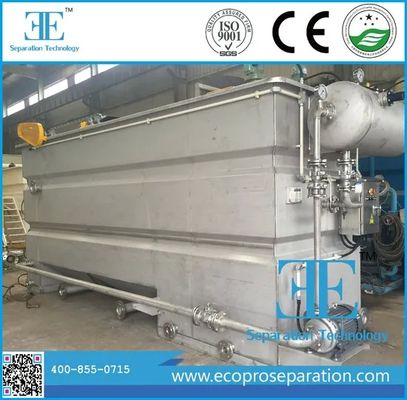

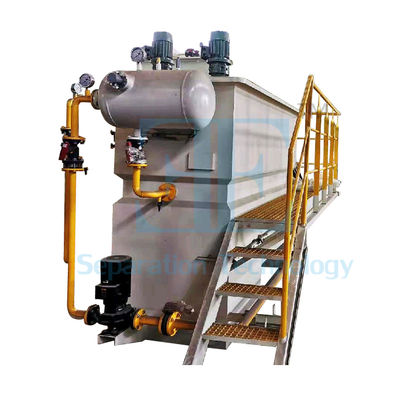

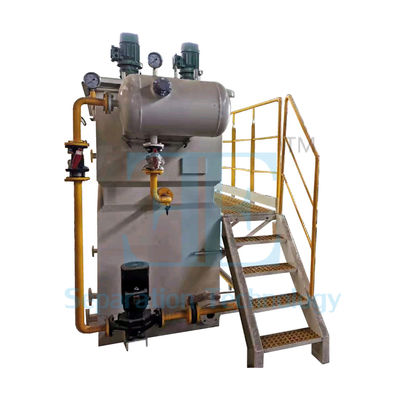

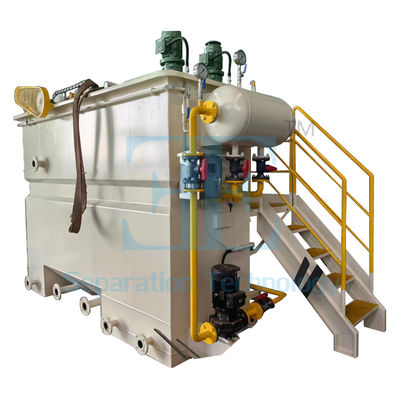

Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Name: Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

Imagem Grande : Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Detalhes do produto:

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	13608

Contato

Descrição de produto detalhada

Modelo no.:	DAF-010	Capacidade:	5m3/h
Compressor de ar:	0,55kW	Potência da bomba dissolvida:	3kw
Potência do Skimmer:	0,1kW	Potência do agitador de coagulação:	0,55kW
Potência do agitador de floculação:	0,55kW	Potência do agitador de pH:	0,55kW
Dimensões:	360017001850 mm	Capacidade de produção:	100/week
Eficiência do Ar Dissolvido:	95%	Conteúdo de umidade da escória:	menos de 98%
Faixa de pH preferida:	6 ~ 9	SS Conteúdo:	ppm ou mg/l
Conteúdo de óleo e graxa:	ppm ou mg/l
Destacar:	5m3/H Capacity DAF System , 0.55kw Air Compressor Wastewater Treatment Machine , 3kw Dissolved Pump Power Dissolved Air Flotation

Ecopro DAF System Wastewater Dissolved Air Flotation Machine

DAF System for Wastewater Treatment

Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles and float them to the surface for removal.

Working Process

Wastewater enters coagulation and flocculation reaction tanks where chemicals (PAC and PAM) form flocs
Water and dissolved air enter the DAF tank reaction zone
Microbubbles adhere to flocs, forming particles less dense than water
Floating scum is scraped to the slag tank
Clean water is collected and either discharged or recirculated

System Advantages

High efficiency dissolved air system (≥95% efficiency)
Automatic liquid level control with scum moisture content <98%
Non-clogging design for easy maintenance
Stable treatment efficiency with automatic control
Compact footprint with high effluent quality

Specifications

Model Selection Criteria

Wastewater type (dairy, car wash, slaughterhouse, food processing, etc.)
Suspended solids content (ppm or mg/L)
Oil & grease content (ppm or mg/L)
pH level (6-9 preferred)
BOD and COD levels (ppm or mg/L)

Applications

Municipal sewage, slaughterhouses, metallurgical industry wastewater, spraying sewage, printing & dyeing sewage, metal-processing sewage, mining stone wastewater, electronic sewage.

Reference Project

Company Profile

Shanghai Ecopro Environmental Engineering Co., Ltd. specializes in water and wastewater treatment equipment and separation services. We provide comprehensive environmental solutions including static screens, rotary drum screens, lamella clarifiers, dissolved air flotation systems, electrochemistry systems, sludge treatment equipment, and various pumps.
